Description
FRAMING DIMENSIONS:
86mm head and wall abutment channels
GLAZED PANEL & ACOUSTIC PERFORMANCE:
2 x 10mm Toughened glass – RW 42dB
10mm + 12mm Toughened glass – RW 43dB
2 x 12mm Toughened glass – RW 45dB
10mm Toughened + 12.8mm Acoustic laminate glass – RW 48dB
10.8mm + 12.8mm Acoustic laminate glass – RW 49dB
12.8mm + 12.8mm Acoustic laminate glass – RW 50dB
INTEGRATED JUNCTIONS:
Choice of wrap round or tapeable aluminium sections that enable the single glazed screen to be fully integrated with 75mm, 100mm and 122mm plasterboard partition walls.
GLASS JUNCTIONS:
Straight, 90 degree, variable and 3 way dry joint glass to glass junctions with optional silicon glass to glass joints and 3 way posts that accept plasterboard partition room dividing walls.
COLOUR FINISH:
Polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order. Specialist finishes available on request.
MANIFESTATION:

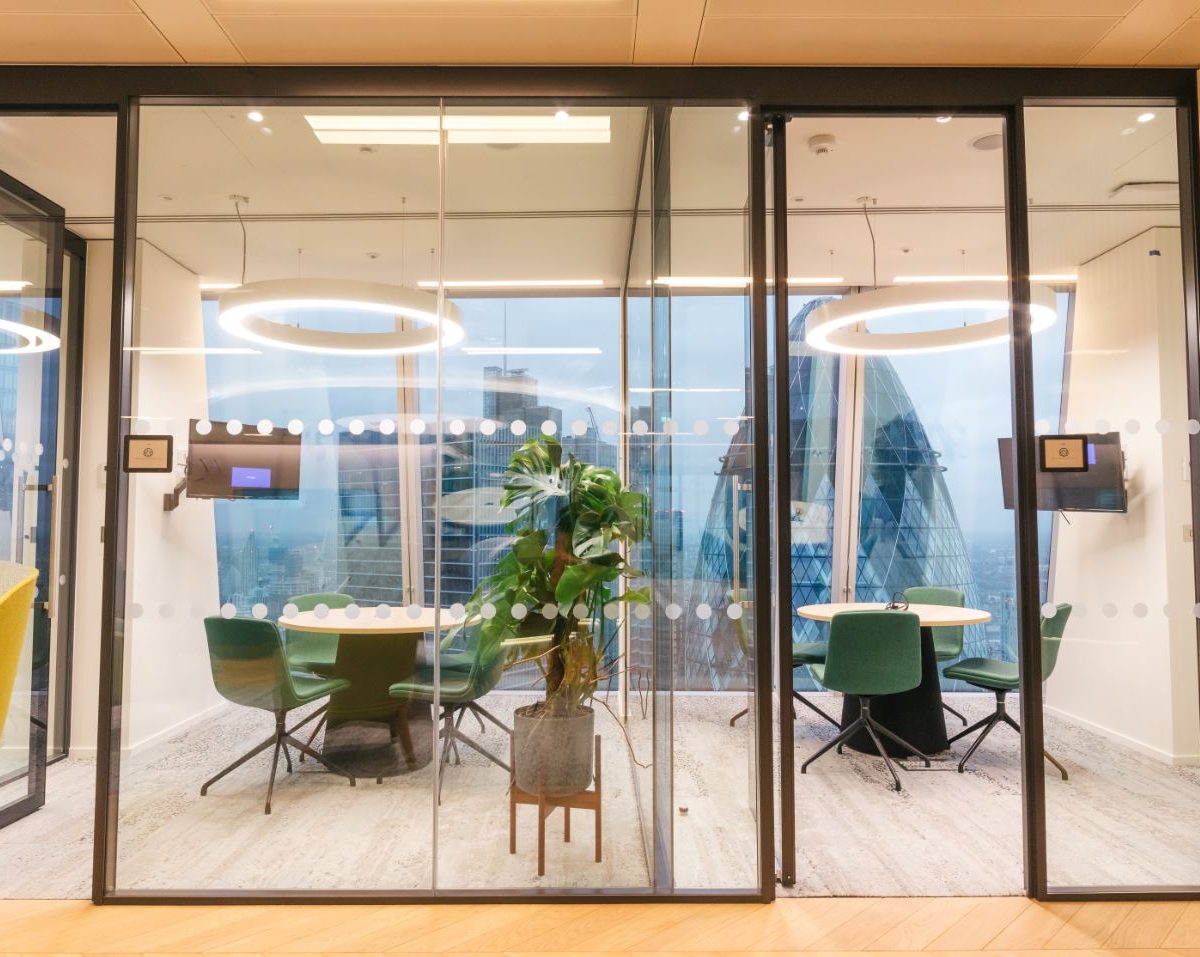

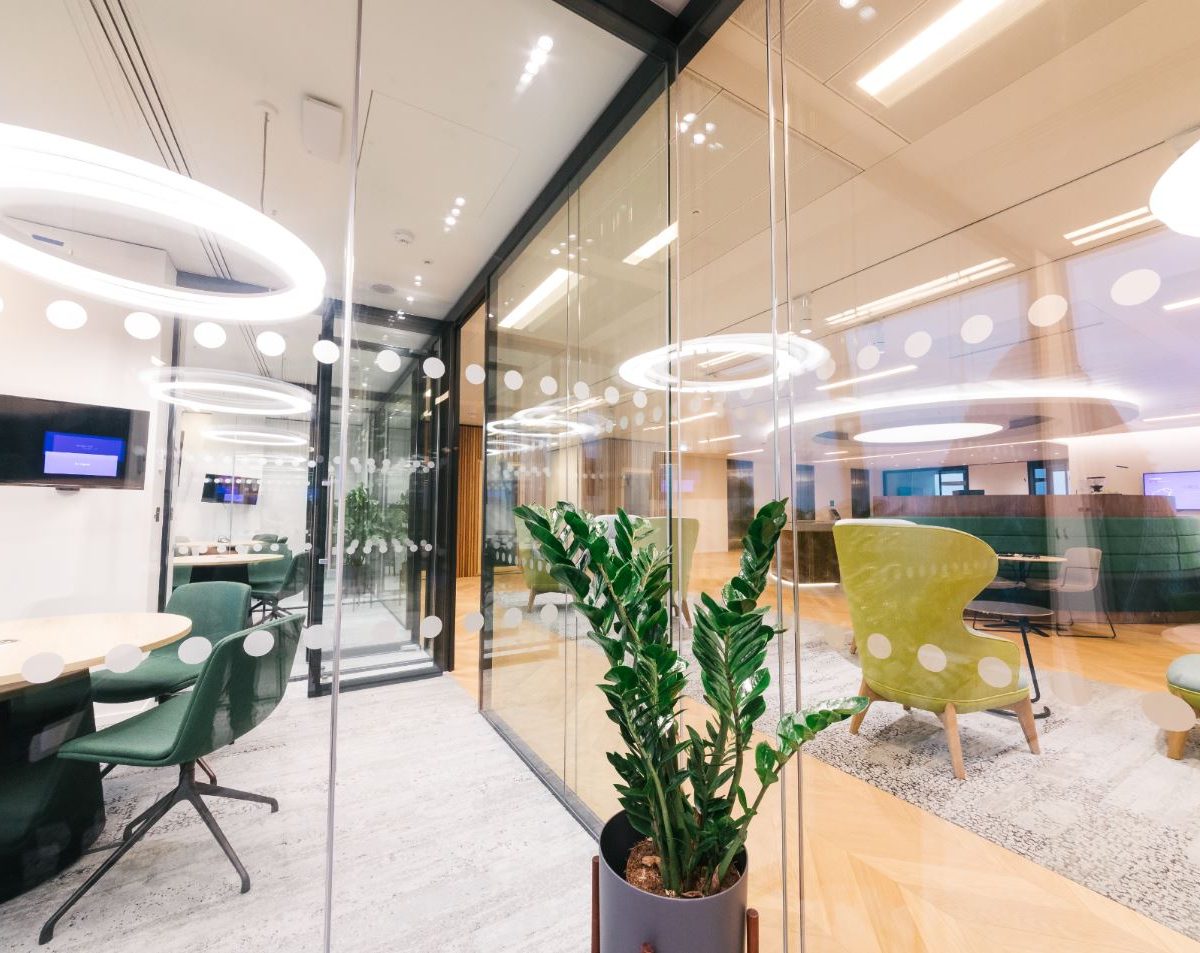

To meet the requirements of Part M of the Building Regulations (minimum 50mm dots @ 100mm centres) or to clients specification using digital printed logos / graphics on film, screen printed or acid etched glass.
DOOR LEAF & DOOR FRAMES:
Expansive range of glass doors available, from frameless to Contempo acoustic single glazed and double glazed doors.
IRONMONGERY:
Range of offset top and bottom hinges, top and bottom pivots complete with floor spring (BTS75) complemented with stainless steel or polished lever sets, pull handles and patch locks.
