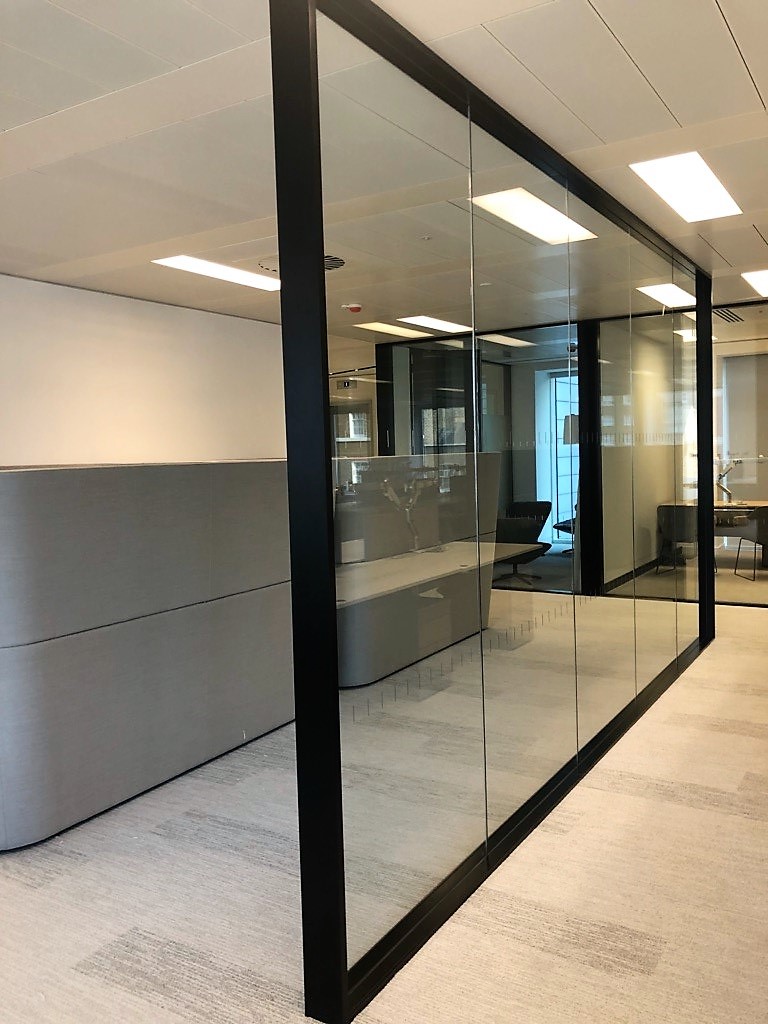

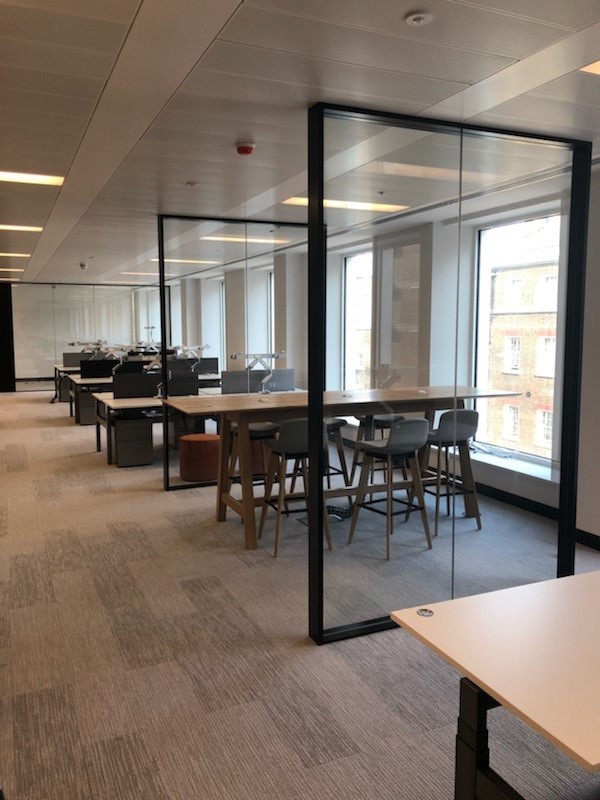

F10 100 SINGLE GLAZED – EXTRA WIDE CHANNELS
Up to 40dB Rw



  • Up to 40dB Rw Sound Reduction
  • Maximum Height 3000mm
  • Timber or aluminium door frames available
  • Single glazed, double glazed and solid doors available
  • Oversized channel asthetic
SKU: PR-CSG-2 Category: Tags: , , , ,

Description

FRAMING DIMENSIONS:
123mm wide head, base and wall abutment channels for for consistent oversized asthetic.

GLAZED PANEL & ACOUSTIC PERFORMANCE:
10mm Toughened glass – Rw 34dB.
12mm Toughened glass – Rw 36dB.
12.8mm Acoustic laminated glass – Rw 40dB.

INTEGRATED JUNCTIONS:
Choice of wrap round or tapeable aluminium sections that enable the single glazed screen to be fully integrated with 75mm, 100mm and 122mm plasterboard partition walls.

GLASS JUNCTIONS:
Straight, 90 degree, variable and 3 way dry joint glass to glass junctions with optional silicon glass to glass joints and 3 way posts that accept plasterboard partition room dividing walls.

COLOUR FINISH:
Polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order. Specialist finishes available on request.

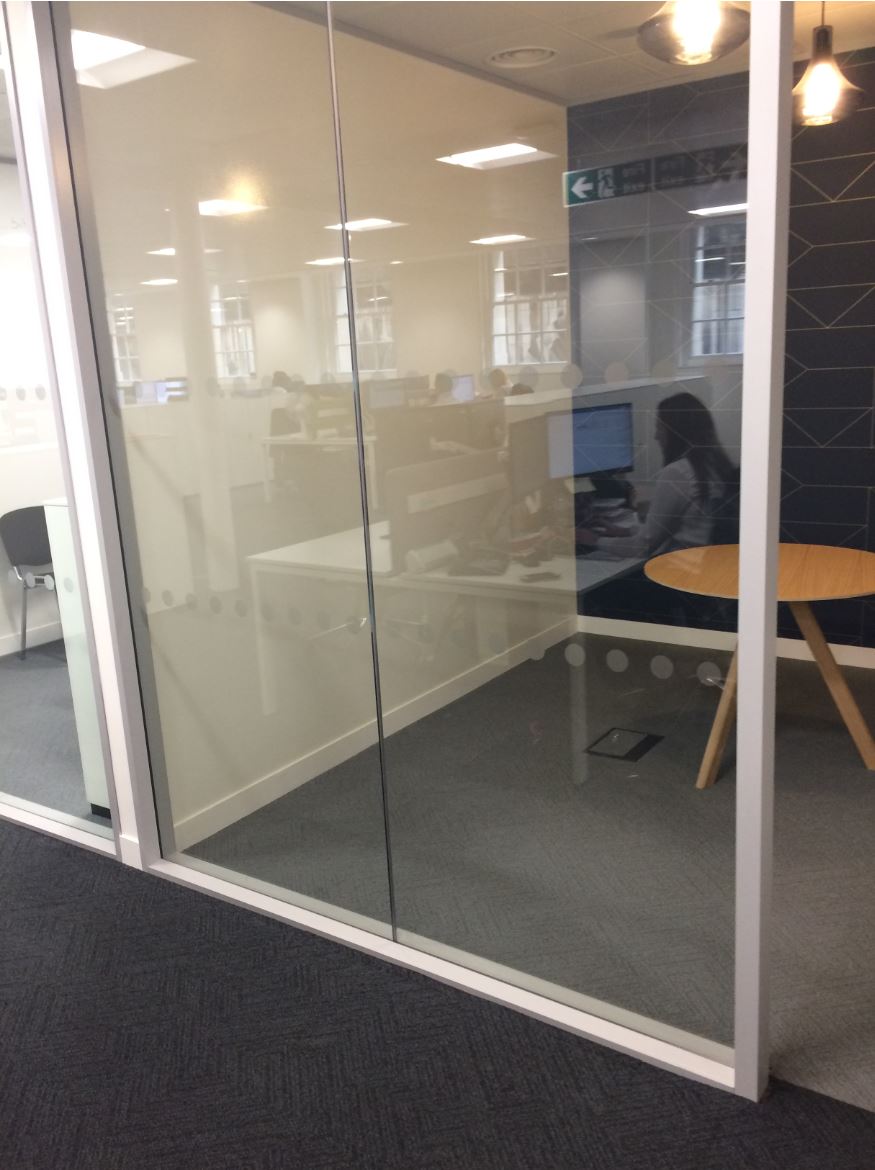

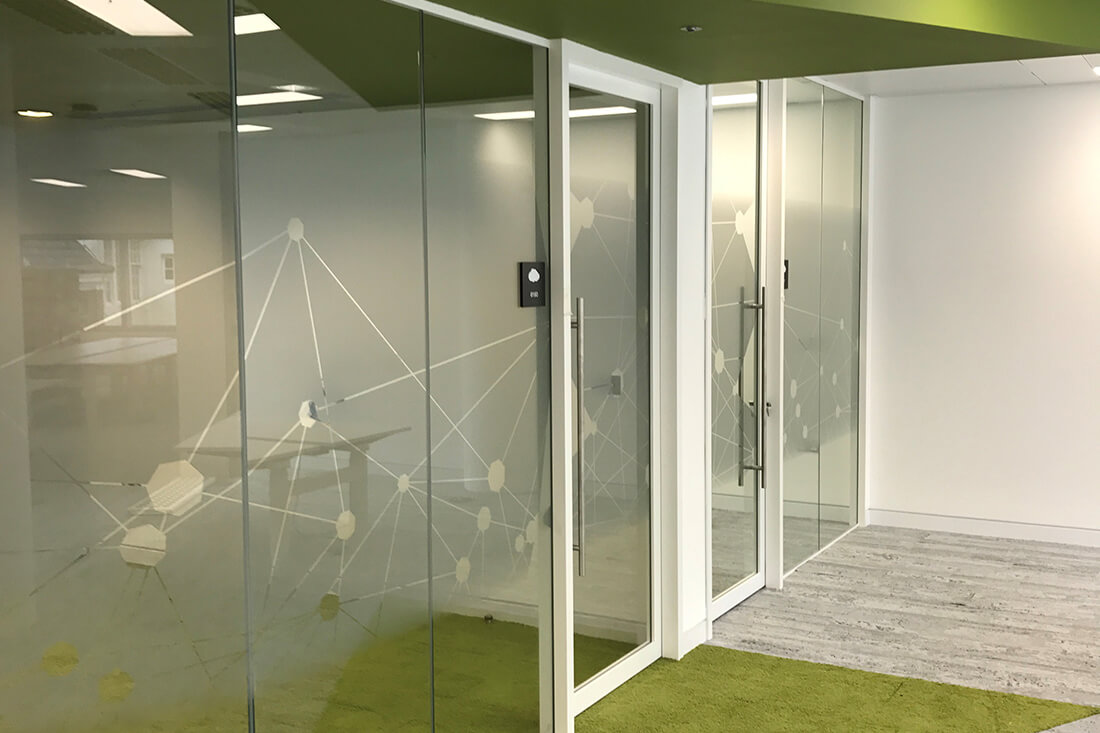

MANIFESTATION:
To meet the requirements of Part M of the Building Regulations (minimum 50mm dots @ 100mm centres) or to clients specification using digital printed logos / graphics on film, screen printed or acid etched glass.

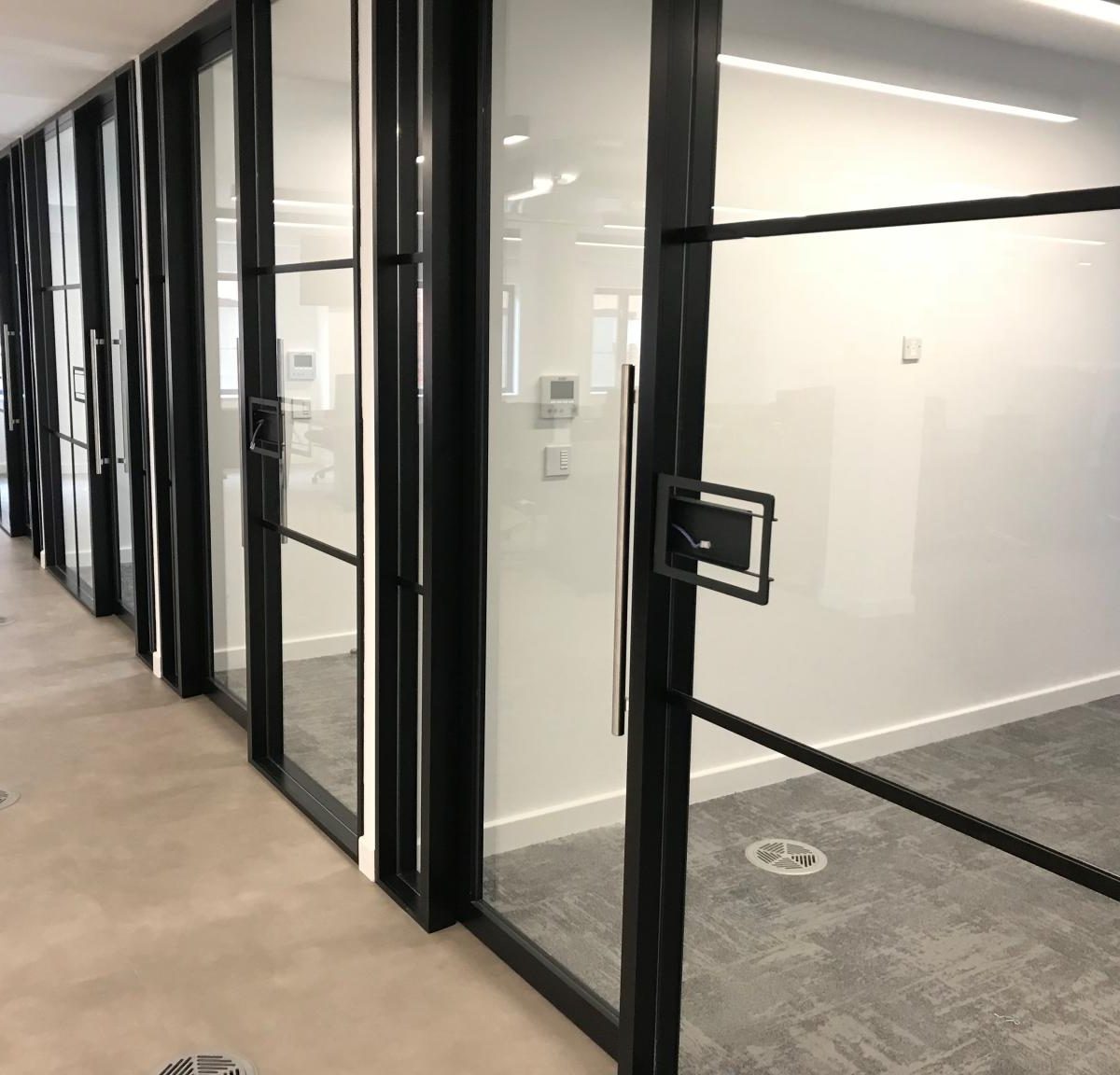

DOOR LEAF & DOOR FRAMES:
Expansive range of glass doors available, from frameless to Contempo acoustic single glazed and double glazed doors.

IRONMONGERY:
Range of offset top and bottom hinges, top and bottom pivots complete with floor spring (BTS75) complemented with stainless steel or polished lever sets, pull handles and patch locks.
