CONTEMPO SINGLE GLAZED DOOR 30 MINUTE FIRE RATED



  • Single glazed 30 minute fire rated acoustic door
  • 44mm wide door leaf for use in most frame types
  • Slimline 80mm perimeter aluminium chassis
  • Maximum height 2800mm

Description

FRAMING DIMENSIONS:
44mm x 80mm aluminium perimeter door chassis

GLAZING
17mm Pyrobel fire glass

COLOUR FINISH:
Polyester powder coated stock colours silver (RAL 9006) and white (RAL 9010). All other BS4800 and RAL colours available to order. Specialist finishes available on request.

MANIFESTATION:
To meet the requirements of Part M of the Building Regulations (minimum 50mm dots @ 100mm centres) or to clients specification using digital printed logos / graphics on film, screen printed or acid etched glass.

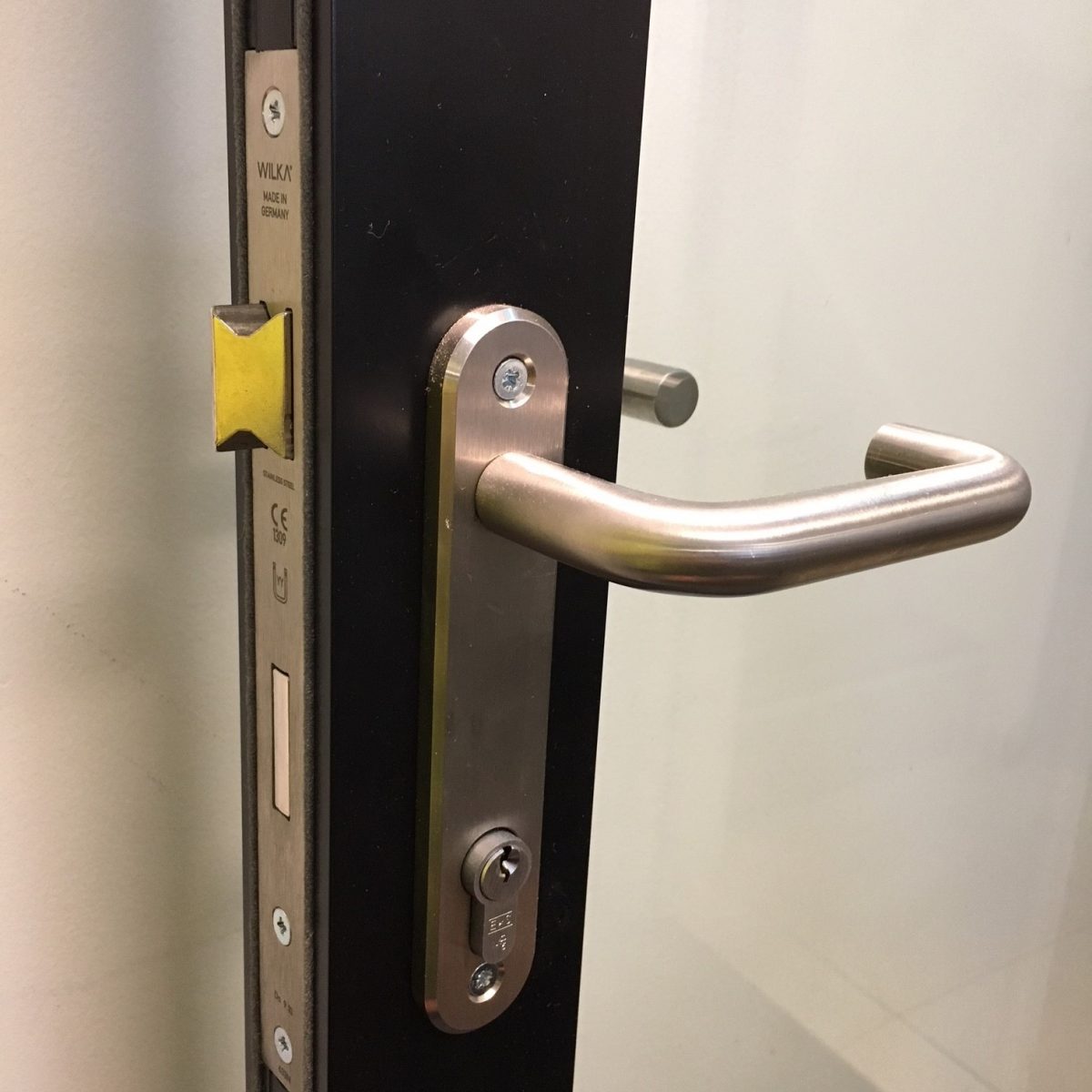

IRONMONGERY:
Please refer to Fusion techinical department for information on approved fire rated ironmongery

Fire Certificates

Drawings

Specification

Data Sheets

Request DWG drawings for Contempo Single Glazed 30-30 Fire Rated
